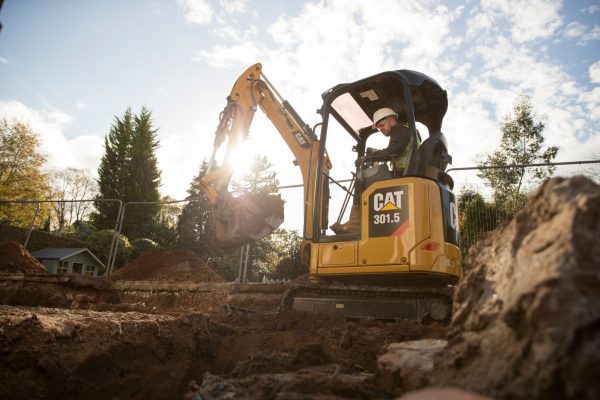

Mini Excavators 301.5

KEY SPECS

Category: Mini Excavator

Net Power	21 HP
Engine Model	C1.1
Displacement	69 in³
Stroke	3.2 in
Bore	3 in
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note	Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Note (1)	Engine power is tested per ISO 14396:2002.
Net Power – 2,400 rpm – ISO 9249, 80/1269/EEC	21 HP
Gross Power – SAE J1995:2014	21.6 HP

Operating Weight	3913 lb
Minimum Operating Weight with Canopy*	3483 lb
Note (1)	*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Maximum Operating Weight with Canopy**	3913 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
EU: CE Plate Weight***	3836 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Dig Depth	100 in
Maximum Blade Height	10.8 in
Stick Length	45.7 in
Boom Height – Shipping Position	40.9 in
Maximum Reach	155.9 in
Maximum Dig Height	137.4 in
Note	*Overall Shipping Length depends on blade position during shipment.
Tail Swing	32.3 in
O/A Undercarriage Length	57.5 in
Track Width – Expanded	51.18 in
Boom In Reach	57.1 in
O/A Shipping Height	90.9 in
Maximum Blade Depth	10.2 in
Maximum Reach – Ground Level	153.1 in
Overall Shipping Length*	141.3 in
Maximum Dump Clearance	98.8 in
Swing Bearing – Height	17.5 in
Minimum Ground Clearance Below Undercarriage	6.1 in
Boom Swing – Left	65 °
Vertical Wall	74.4 in
Track Width – Retracted	39 in
Track Belt/Shoe Width	9.1 in
Boom Swing – Right	50 °

Swing Bearing – Height	17.5 in
O/A Undercarriage Length	57.5 in
Maximum Reach – Ground Level	146.9 in
Boom Swing – Left	65 °
Maximum Reach	149.6 in
O/A Shipping Height	90.9 in
Maximum Blade Depth	10.2 in
Minimum Ground Clearance Below Undercarriage	6.1 in
Vertical Wall	70.9 in
Dig Depth	92.1 in
Track Width – Expanded	51.18 in
Track Belt/Shoe Width	9.1 in
Stick Length	37.8 in
Maximum Dig Height	135 in
Overall Shipping Length*	142.5 in
Boom In Reach	57.5 in
Maximum Blade Height	10.8 in
Maximum Dump Clearance	96.5 in
Boom Swing – Right	50 °
Note	*Overall Shipping Length depends on blade position during shipment.
Boom Height – Shipping Position	42.9 in
Tail Swing	32.3 in
Track Width – Retracted	39 in

Pump Flow at 2,400 rpm	17.4 gal/min
Digging Force – Stick – Long	1616.4 lbf
Operating Pressure – Swing	1493.9 psi
Digging Force – Stick – Standard	1843.4 lbf
Auxiliary Circuit – Primary – Flow	8.7 gal/min
Auxiliary Circuit – Secondary – Pressure	3089.3 psi
Operating Pressure – Travel	3089.3 psi
Operating Pressure – Equipment	3089.3 psi
Auxiliary Circuit – Secondary – Flow	3.7 gal/min
Digging Force – Bucket	3169.8 lbf
Auxiliary Circuit – Primary – Pressure	3089.3 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump

Maximum Traction Force – High Speed	2315.5 lbf
Ground Pressure – Minimum Weight	4 psi
Ground Pressure – Maximum Weight	4.4 psi
Travel Speed – High	2.7 mile/h
Travel Speed – Low	1.8 mile/h
Maximum Traction Force – Low Speed	3597 lbf
Gradeability – Maximum	30 degrees
