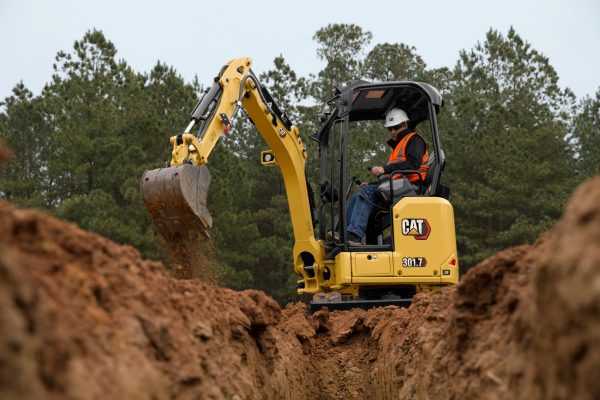

Mini Excavators 301.7 CR

KEY SPECS

Category: Mini Excavator

Net Power	21 HP
Engine Model	C1.1
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Bore	3 in
Stroke	3.2 in
Displacement	69 in³
Note	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture.
Engine Power	21.6 HP

Operating Weight	4222 lb
Minimum Operating Weight with Canopy*	3946 lb
Maximum Operating Weight with Canopy**	4222 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (1)	*Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
EU: CE Plate Weight***	4167 lb

Dig Depth	100 in
Tail Swing	25.6 in
O/A Shipping Height	90.6 in
Maximum Blade Height	10.6 in
Minimum Ground Clearance Below Undercarriage	5.5 in
O/A Undercarriage Length	62.6 in
Boom Height – Shipping Position	40.9 in
Maximum Dump Clearance	98.8 in
Track Belt/Shoe Width	9.1 in
Maximum Dig Height	137.4 in
Track Width – Expanded	51.18 in
Maximum Reach – Ground Level	159.8 in
Swing Bearing – Height	17.4 in
Boom Swing – Left	65 °
Stick Length	45.7 in
Vertical Wall	74.4 in
Track Width – Retracted	39 in
Boom Swing – Right	50 °
Note	*Overall Shipping Length depends on blade position during shipment.
Maximum Reach	162.6 in
Boom In Reach	63.8 in
Overall Shipping Length*	141.3 in
Maximum Blade Depth	10.4 in

Operating Pressure – Equipment	3553.4 psi
Operating Pressure – Swing	2132.1 psi
Digging Force – Stick – Standard	2135.7 lbf
Pump Flow at 2,400 rpm	17.4 gal/min
Auxiliary Circuit – Primary – Pressure	3553.4 psi
Digging Force – Bucket	3641.9 lbf
Auxiliary Circuit – Secondary – Pressure	3553.4 psi
Operating Pressure – Travel	3553.4 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Auxiliary Circuit – Secondary – Flow	3.7 gal/min
Auxiliary Circuit – Primary – Flow	8.7 gal/min
Digging Force – Stick – Long	1865.9 lbf

Track Belt/Shoe Width	9.1 in
Overall Shipping Length*	142.5 in
Track Width – Expanded	51.18 in
O/A Undercarriage Length	62.6 in
Maximum Reach – Ground Level	153.5 in
Boom Height – Shipping Position	42.9 in
Boom Swing – Left	65 °
Maximum Reach	156.3 in
Maximum Blade Depth	10.4 in
Dig Depth	92.5 in
Maximum Dump Clearance	96.5 in
Maximum Blade Height	10.6 in
Tail Swing	25.6 in
Boom In Reach	64.2 in
Minimum Ground Clearance Below Undercarriage	5.5 in
O/A Shipping Height	90.6 in
Swing Bearing – Height	17.4 in
Stick Length	37.8 in
Vertical Wall	70.9 in
Boom Swing – Right	50 °
Track Width – Retracted	39 in
Maximum Dig Height	135 in
Note	*Overall Shipping Length depends on blade position during shipment.

Maximum Traction Force – High Speed	2675.2 lbf
Travel Speed – High	2.7 mile/h
Ground Pressure – Maximum Weight	4.4 psi
Travel Speed – Low	1.8 mile/h
Maximum Traction Force – Low Speed	4136.5 lbf
Gradeability – Maximum	30 degrees
Ground Pressure – Minimum Weight	4 psi
