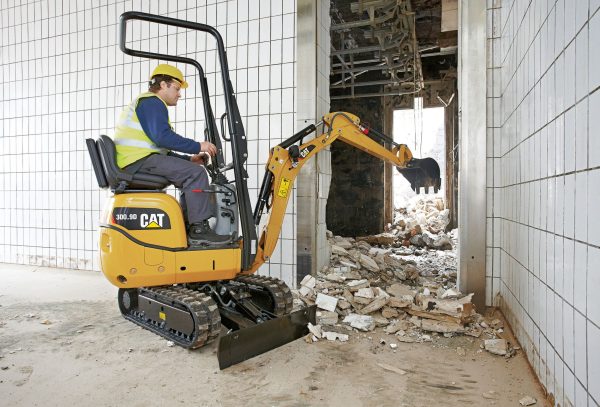

Mini Excavators 300.9D

KEY SPECS

Category: Mini Excavator

Operating Weight – Without Safety Frame	2061 lb
Digging Force – Bucket	2000 lb
Digging Force – Stick	1011 lb
Operating Weight – With Safety Frame	2170 lb

Net Power	13 HP
Engine Model	Yanmar 31NV70
Rated Speed	2100 r/min
Maximum Engine Output	18 HP
Gross Power – ISO 14396	18 HP
Diesel Tank Volume	2.64 gal (US)
Displacement	52 in³
Flywheel Output ISO	13 HP
Battery	12 V, 20 Amp
Type	Water cooled model 3-cylinder diesel engine
Make/Type	Yanmar 31NV70
Emissions	Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

Operating Weight	2061 lb
Operating Weight – Without Safety Frame	2061 lb
Operating Weight – With Safety Frame	2170 lb

Dig Depth	68 in
Undercarriage Width – Extended	2.83 ft
Width	2.4 ft
Height – With ROPS Safety Frame Folded Down	4.94 ft
Maximum Dump Height	6.68 ft
Maximum Dozer Lift Height	8 in
Length – Undercarriage	4 ft
Maximum Vertical Dig Depth	4.43 ft
Minimum Front Linkage Swing Radius	3.77 ft
Boom Swing Angle – Left	55 °
Undercarriage Width – Retracted	2.33 ft
Boom Swing Angle – Right	56 °
Maximum Reach	10.09 ft
Maximum Reach – Ground Level	9.92 ft
Transport Length – Arm Lowered	9 ft
Track Width	7 in
Tail Swing Radius	2.41 ft
Maximum Dozer Dig Depth	7 in
Maximum Dig Height	9.39 ft
Height – With ROPS Safety Frame Unfolded	7.47 ft

Pumps	2 gear pumps
Discharge Capacity	11.4 + 11.4 L/min (3 + 3 gal/min)
Operating Pressure for the Work and Travel Hydraulics	2466 psi
Operating Pressure Pivot	1015 psi
Hydraulic Tank Capacity	3.7 gal (US)
