| Specifications and Parameters | |
| Model | M754 |
| Engine | Doosan DM02 |
| Horsepower(HP) | 75 |
| Displacement(L) | 2.4 |
| Torque(N·M) | 300/1400rpm |
| Transmission | |
| Gearshift | 12+12 |
| Technical Route | Synchronized |
| PTO Speed(r/min) | 540/1000 |
| Hydraulic | |
| Lifting Power 610mm(kg) | 1300 |
| Three-point Suspension Type | CAT.2 |
| Hydraulic Output Flow(L/min) | 16+9 |
| Number of Multi-way Valves | 2 |
| Parameter | |
| Length*Width*Height(mm) | 4105*1830*2910(CAB) or 2678(ROPS) |
| Wheelbase(mm) | 2070 |
| Ground Clearance(mm) | 360 |
| Weight without Ballast(kg) | 2940(CAB) or 2780(ROPS) |
| Tires | |
| Front | 300/70R20 |
| Rear | 380/85R30 |

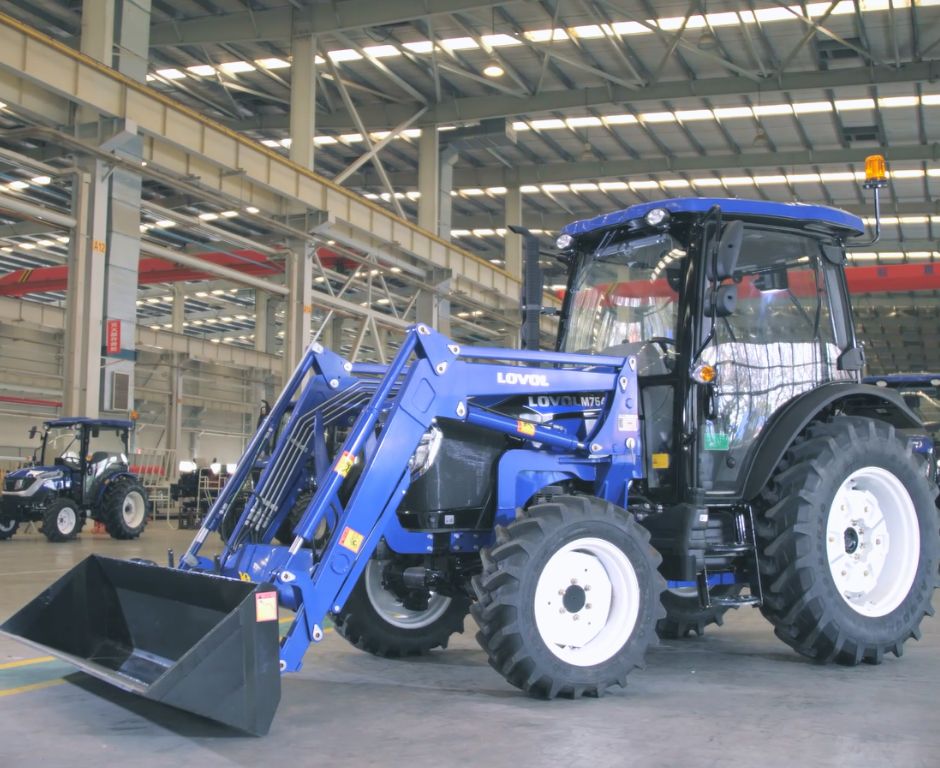

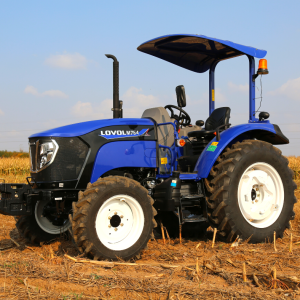

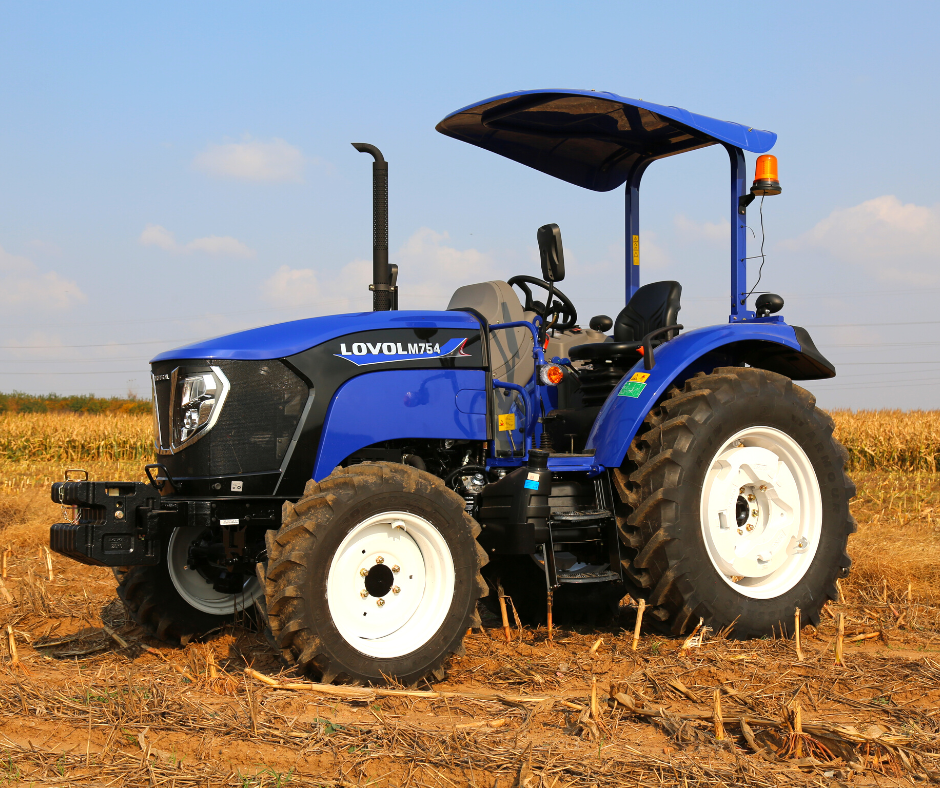

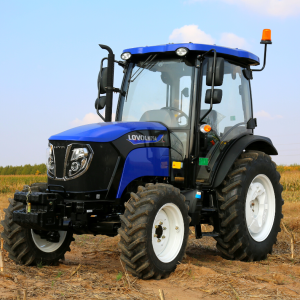

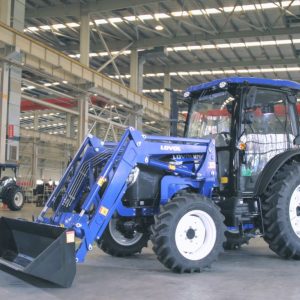

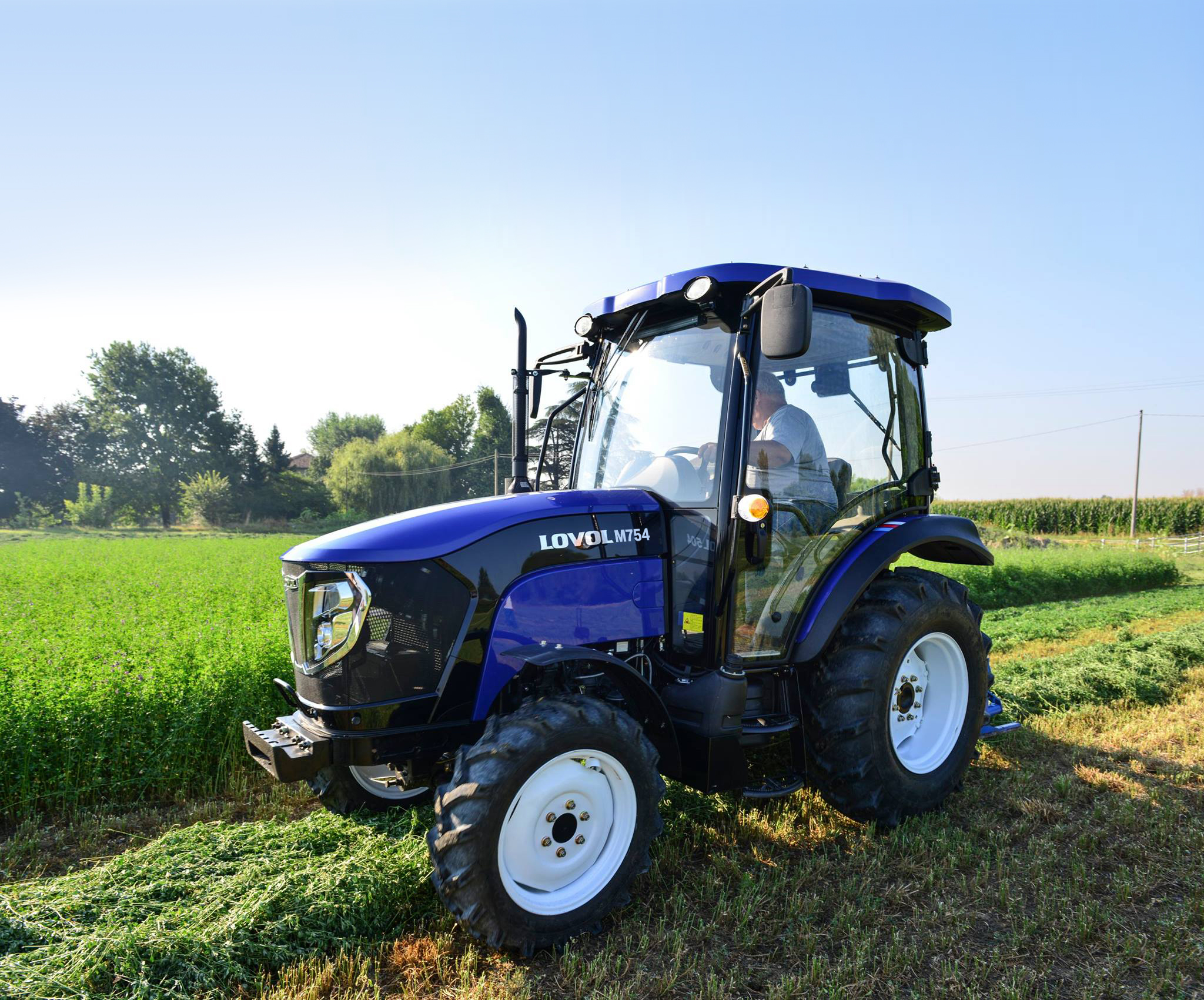

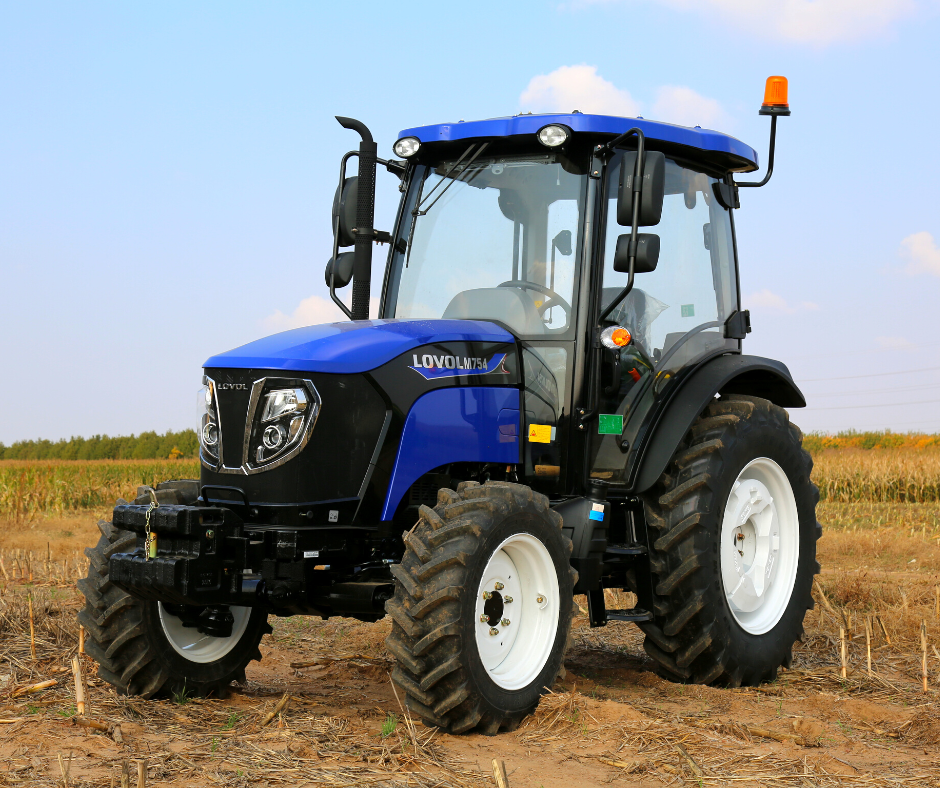

M754 Tractor
M754 Tractor
LOVOL M754 is designed for comfort and easy operation. A cabin with A/C allows the operator to have an excellent view and comfortable environment, and operation handles with an ergonomic design make the drive easy and flexible.
The strong powertrain enables M754 can meet utility jobs, transportation, and farming jobs.
- Engine：Doosan DM02
- Model(/)：M754
- Horsepower(HP)：75
Product Parameters
