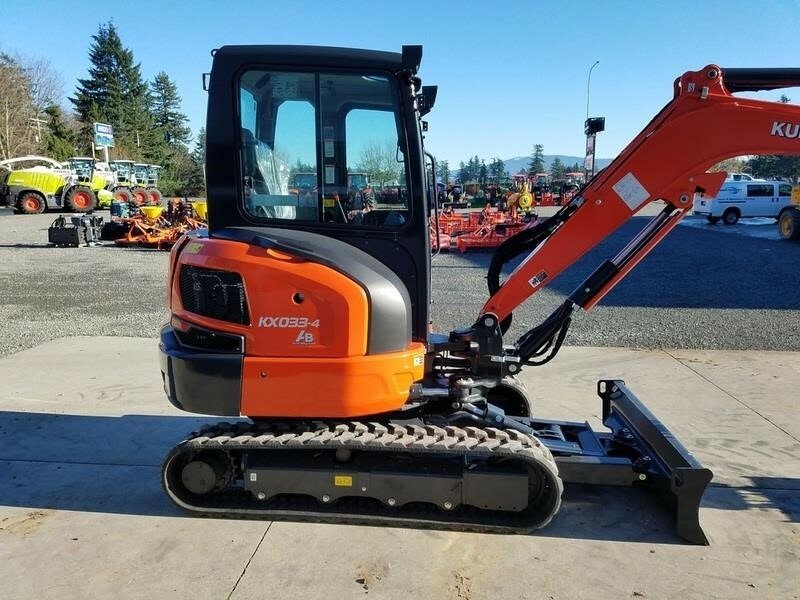

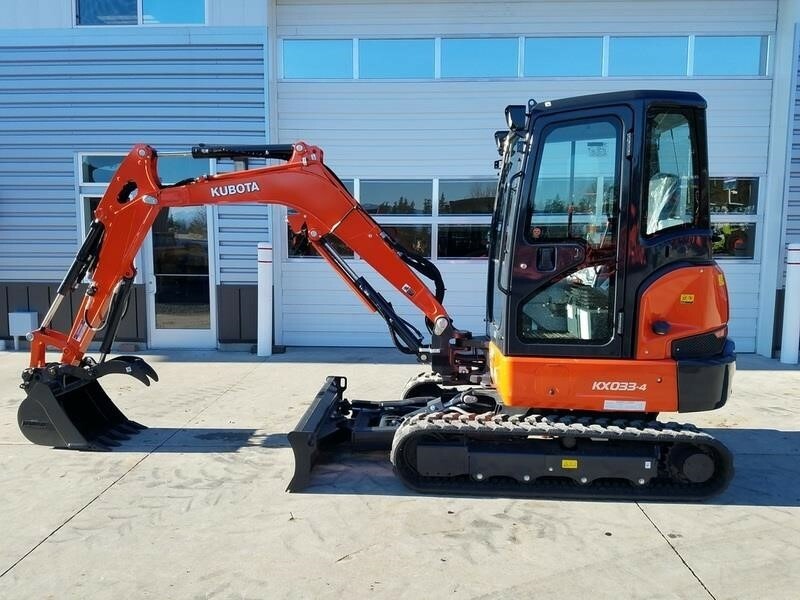

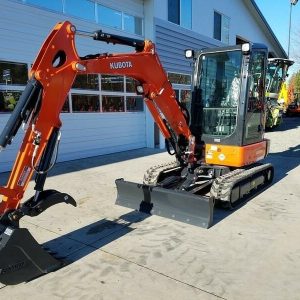

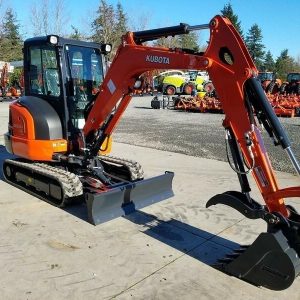

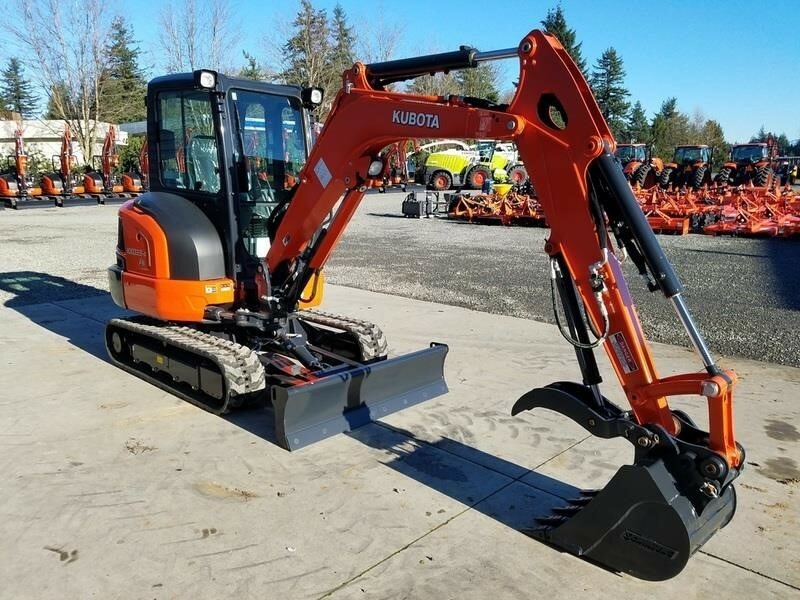

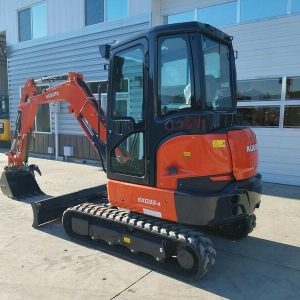

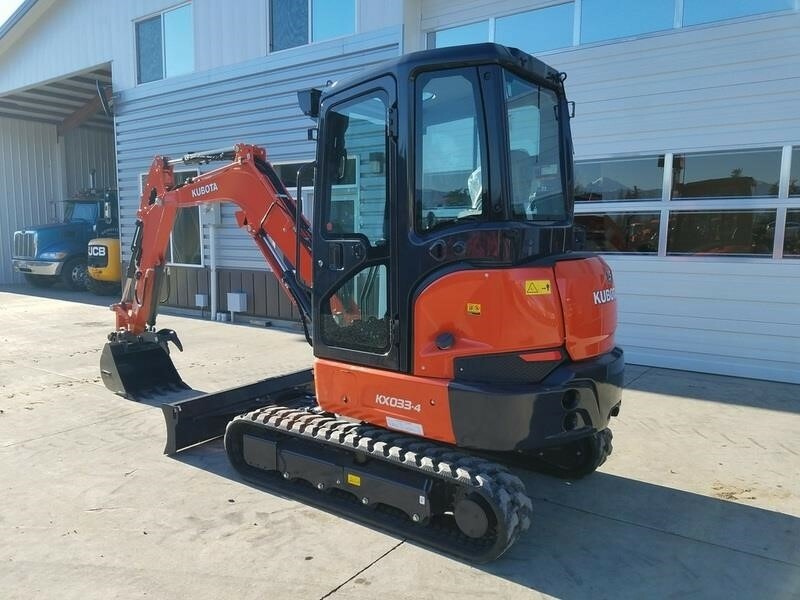

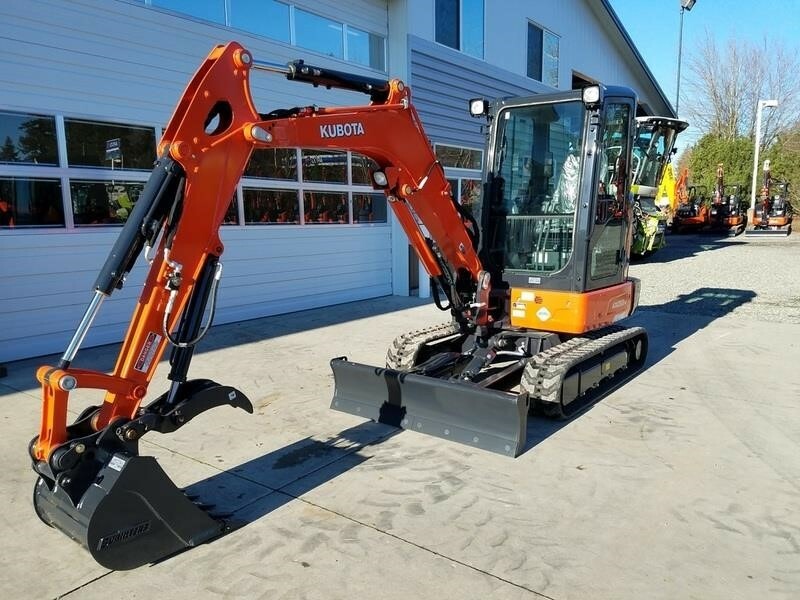

2025 Kubota KX033-4 Mini Excavator

Engine:

• Model: Kubota D1703M-DI-E4
• Gross Output: 24.8 HP (18.5 kW) at 2200 rpm
• Net Output: 23.2 HP (17.3 kW) at 2200 rpm
• Displacement: 100.5 cu. in. (1647 cc)

Hydraulic System:

• Auxiliary Hydraulic Flow: 10.5 gpm (39.6 l/min)
• Bucket Breakout Force: 8,138 lbf (3,694 kgf)
• Arm Breakout Force: 3,867 lbf (1,756 kgf)

Dimensions and Weight:

• Overall Length: 15 ft 6 in (4730 mm)
• Overall Height: 8 ft 1 in (2480 mm)
• Overall Width: 5 ft 1 in (1550 mm)
• Operating Weight: Approximately 7,245 lb (3,286 kg)

Blade:

• Width: 5 ft 1 in (1550 mm)
• Height: 15.2 in (385 mm)
• Maximum Lift Above Ground: 15.9 in (405 mm)
• Maximum Drop Below Ground: 18.9 in (480 mm)

Performance:

• Maximum Digging Depth: 10 ft 6 in
• Travel Speed: Low – 1.9 mph (3 km/h); High – 2.9 mph (4.6 km/h)
• Maximum Traction Force: 6,091 lbf (2,763 kgf)

Swing System:

• Unit Swing Speed: 8.9 rpm
• Boom Swing Angle: Left – 70°; Right – 48°

Fluid Capacities:

• Hydraulic Oil Reservoir: 11.8 gal (44.6 l)
• Hydraulic System Capacity: 16.1 gal (61 l)
• Fuel Tank Capacity: 12.4 gal (46.9 l)

Additional Features:

• ROPS/FOPS: Available with Canopy or Cab options
• Tracks: Available in Rubber or Steel
